Epoxi Adhesivos

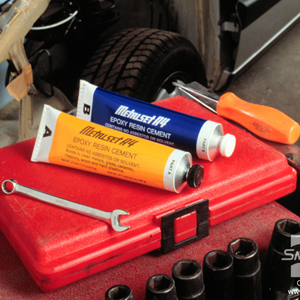

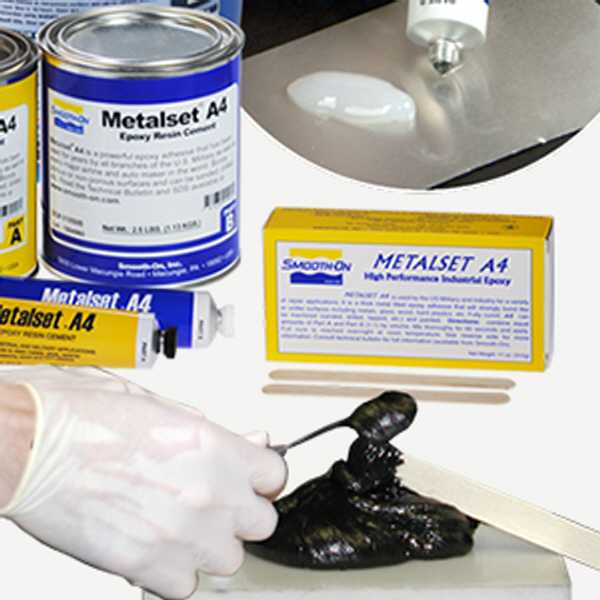

Metalset ® A4 adhesivo epoxi- relleno de Aluminio

Metalset A4 ® es un potente adhesivo epoxi que ha sido utilizado durante años por los militares de EE.UU, así como por todas las grandes aerolíneas y fabricantes de automóviles en el mundo. A4 se utiliza en cientos de aplicaciones industriales y ofrece una excelente adhesión a superficies porosas y no porosas. Se puede aplicar en superficies verticales manteniendose en su sitio. Metalset A4 ® cura durante la noche con una contracción insignificante.

Una vez curado, Metalset A4 ® tiene unas buenas cualidades de mecanizado (lijado, taladrado, roscado) y es resistente a los álcalis, ácidos diluidos y disolventes. Entre otras aplicaciones se utiliza para detener fugas en tuberías, válvulas y tanques (por ejemplo en depósitos de gasolina de automóviles), para unir superficies iguales o desiguales, como relleno de juntas metálicas, abolladuras, etc. También se utiliza para fabricar pernos de anclaje en madera y hormigón y para reparar superficies metálicas. El tiempo de curado de Metalset A4 ® es de 16 horas.

boletín técnico

Metalset A4

Instructions

A clean, dry surface is a necessary prerequisite for adhesive bonding. Adhesives will stick to either the surface of which a bond is desired or to that film of extraneous material directly on that surface. Rarely can a structural adhesive penetrate through surface contaminants to provide an optimum bond on an unclean surface.

Porous materials are simple to bond, provided they are dry. The surface should be sanded till clean and free from dust. Non-porous surfaces, such as found on metal and plastic materials, should be degreased, dried and roughened by sanding, sandblasting or chemical etching. The etched or sandblasted surfaces should be covered within a few hours of treatment to prevent contamination.

Handlers should wear clean cotton gloves to prevent body oils from contaminating the clean surfaces.

Epoxy adhesives do not perform well on metals such as nickel, chromium, tin or zinc nor on soft thermoplastics like polyethylene.

Because no two applications are quite the same, a small test application to determine suitability for your project is recommended if performance of this material is in question.

MEASURING & MIXING - Measure equal amounts of Parts A and B (or 2A:1B) by volume into a clean mixing container. Mixing tools and containers should be clean and made of metal, glass or plastic. After dispensing required amount of Parts A and B into mixing container, mix thoroughly for 3 minutes making sure that you scrape the sides and bottom of the mixing container several times.

Application - Apply to prepared surface and let cure for 24 hours. Applying mild heat will cure EA-40® faster – 150°F/65°C for 6 hours.

Post Curing - After EA-40® has cured at room temperature, heating the epoxy to 150° F (65° C) for 4 to 8 hours will increase physical properties and performance. Let cool to room temp. before moving bonded substrates, machining, etc.

To Attain Maximum Heat Distortion Temperature - let cure for 24 hours at room temperature, heat cure for 2 hours at 250°F (122°C).

At mix ratio 1A:1B – HDT will be 163°F (73°C).

At mix ratio 2A:1B – HDT will be 217° F (103 °C)

Safety - Use in a properly ventilated area (“room size” ventilation). Wear safety glasses, long sleeves and rubber gloves to minimize contamination risk.

Store and use material at room temperature (73°F/23°C). This product has a limited shelf life and should be used as soon as possible.

Smooth-On MT13

Smooth-On MT-13 ® es un adhesivo epoxi de rendimiento superior. Se utiliza en aplicaciones que requieren la máxima fuerza de sujeción y la máxima resistencia al agua. MT-13 es un cemento adhesivo epoxi bicomponente que se mezcla en partes iguales por volumen o en peso 100gr.A +123gr.B en unas pocas horas se convierte en un gel. Tiene un curado de 16 horas y se adhiere muy bien a las superficies porosas y no porosas. MT-13 se utiliza en la industria de la navegación para el montaje y para realizar reparaciónes.

boletín técnico

MT-13

Variobond is a two component thixotropic epoxy resin. Recommended as bonding paste for various materials. Solvent free. Excellent adhesion. Easy to apply. Excellent water resistance.

Smooth-On Super Instant Epoxy Adhesive

Smooth-On Super Instant® Epoxi es un adhesivo bicomponente diseñado para proporcionar una unión rápida. Cuando se mezcla en proporciones iguales por volumen o en peso, cura con la suficiente rapidez para permitir el manejo. El tiempo de curado a temperatura ambiente es de 5 a 10 minutos. Super Instant® adhiere de forma inmediata metales como el acero, el aluminio y el bronce, madera, vidrio, mampostería y muchos plásticos duros.
Super Instant® Epoxy - 5-10 minutos de curado

boletín técnico

FEATURES

DESCRIPTION
Variobond is a thixotropic, two component bondin
g paste based on solvent free epoxy resins and
polyamine adduct hardeners.

PRINCIPAL CHARACTERISTICS
• Suitable as adhesive for bonding various materials such as wood, steel, aluminium, plastics and
their combinations;
• Also suitable as multi-purpose filler for steel, wood, GRP, etc.;
• Recommend for fillet-joints;
• Good adhesive power;
• Excellent water resistance;
• Easy mixing as both components are thixtropic;
• Easy application;
• Suitable for woodcore epoxy constructions;
• Also available in mahogany colour, packed in a cartridge.

COLOURS AND GLOSS
Opaque or Mahogany - Gloss

BASIS PROPERTIES (AT 23 ̊C AND 50% R.H.)
Density : approx. 1,4 g/cm3 (mixed product)
Solid content : approx. 100 % (volume)
Recommended d.f.t. : depending on application
Dust dry after : approx. 24 hours
Full cure after : approx. 2 days, see additional information
Recoating interval : min. 24 hours, see additional information
max. unlimited
Shelf life : separate components, stored cool and dry in original packaging, minimum
12 months Flash point (DIN53213) : base component 150 ºC
hardener 112ºC
SPREADING RATE
Depending on application: approx. 1,0 - 3,0 m2/kg, see additional information
The practical spreading rate depends on a number of variables, such as: shape and size of object to be painted, the condition and profile of the substrate, the method of application, climatologic conditions and skill of labour.

SUBSTRATE CONDITION AND TEMPERATURE
Wood : clean and dry, free from any contamination and loose particles, moisture content maximum 12%, pre-treated with Variopox Injection resin and/or Variopox Impregnating resin and sanded with grit paper P120;
Metals : clean and dry, free from oil, grease, contamination and loose particles, pre-treated with IJmopox ZF primer and sanded with grit paper P120;
Concrete: clean and dry, free from any contamination and loose particles, moisture content maximum 4%, pre-treated with Variopox Injection resin;
Polyester : clean and dry, free from contamination and loose particles, exposed glass fibres pre-treated with Variopox Injection resin and sanded with grit paper
P120; Other surfaces : clean and dry, in good condition, free from any contamination and loose
particles, sanded with grit paper P120;

Super Instant Epoxi

Variobond Adhesivo Epoxi
